Admin Web Interface

The Andruav Authenticator includes a web-based admin interface for monitoring and managing the authentication server, registered users, and connected communication servers.

Overview

The admin interface provides a real-time dashboard for:

  • Viewing system statistics (total users, online servers, connected users)

  • Managing user accounts (file-based or database storage)

  • Monitoring communication server status and connected users

  • Viewing database configuration

Access

To access the admin interface:

  1. Navigate to https://<auth-server-host>:<webadmin_port>

  2. Login with the credentials configured in server.config

Default credentials (change in production):

  • Username: admin

  • Password: admin123

Features

Dashboard

The main dashboard displays:

  • Database Configuration: Shows the current storage type (single/file/db) with a descriptive badge

  • Total Users: Count of registered users (varies by storage type)

  • Online Servers: Number of active communication servers connected via S2S

  • Connected Users: Total users currently connected across all servers

Statistics auto-refresh every 30 seconds.

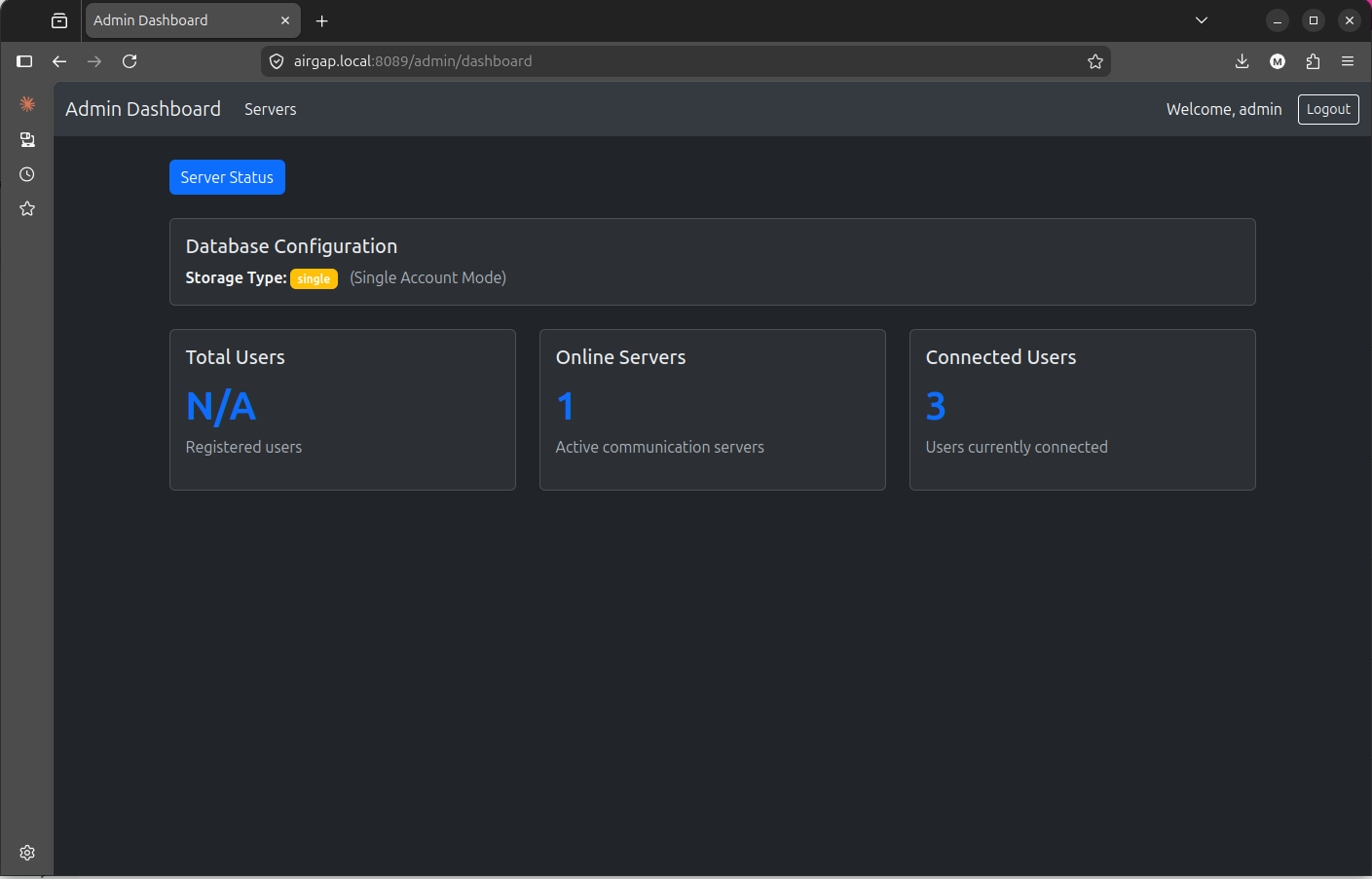

Admin Dashboard

User Management

The user management interface varies based on the account_storage_type configuration:

File-Based Storage (``account_storage_type: “file”``)

  • Access via “Users” link in navigation

  • View and manage users stored in JSON file (db_users)

  • CRUD operations for user accounts

Database Storage (``account_storage_type: “db”``)

  • Access via “Teams & Logins” link in navigation

  • Manage teams and their associated logins

  • SQLite database backend with migrations

Single Account Mode (``account_storage_type: “single”``)

  • No user management interface (single hardcoded account)

  • Dashboard shows “N/A” for user count

Server Status

The “Servers” page provides real-time monitoring of communication servers:

  • Server Grid: Visual cards showing each registered server - Server ID - Online/Offline status (green/red badge) - Public IP address - Port number - Version information

  • Connected Users Panel: When a server is selected, shows: - Login ID - Account ID (with hashed account ID) - Unit name - Actor type (GCS, Agent, Admin)

Servers auto-refresh every 30 seconds. Click on a server card to view its connected users.

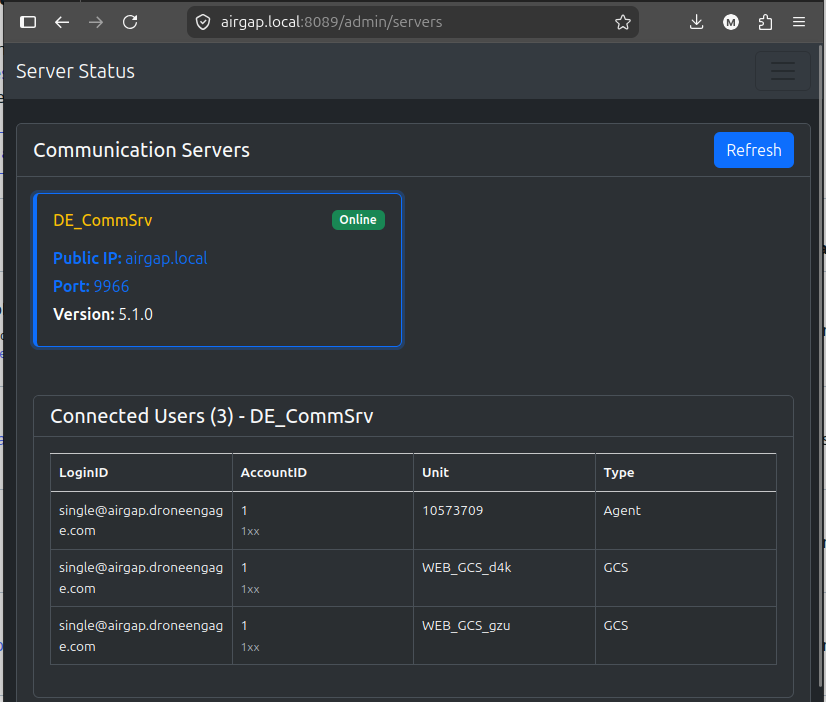

Server Status Page

Configuration

The admin interface is configured in server.config:

{
    "webadmin_enable": true,
    "admin_username": "admin",
    "admin_password": "admin123",
    "session_secret": "change-this-secret-in-production",
    "webadmin_port": 8089,
    "webadmin_listening_ip": "0.0.0.0"
}

Configuration Parameters

Security Considerations

Production Deployment

  1. Change Default Credentials

    • Always change admin_username and admin_password

    • Use strong, unique passwords

  2. Session Secret

    • Use a long, random string for session_secret

    • Different for each deployment

    • Never commit to version control

  3. SSL/TLS

    • Ensure enable_SSL is true in production

    • Use valid certificates from a trusted CA

    • Access via HTTPS only

  4. Network Access

    • Consider binding to specific IP instead of 0.0.0.0

    • Use firewall rules to restrict access

    • Consider VPN or private network access

  5. CSRF Protection

    • Interface uses CSRF tokens for form submissions

    • Sessions are encrypted using the session secret

Troubleshooting

Cannot Access Admin Interface

  • Verify webadmin_enable is true in server.config

  • Check that webadmin_port is not blocked by firewall

  • Ensure SSL certificates are valid if enable_SSL is true

  • Review server logs for startup errors

Login Fails

  • Verify admin_username and admin_password in server.config

  • Check that session_secret is set

  • Clear browser cookies and try again

  • Check browser console for JavaScript errors

Statistics Not Loading

  • Verify API endpoints are accessible

  • Check browser console for network errors

  • Ensure storage backend (file/database) is accessible

  • Review server logs for API errors

Server Status Not Updating

  • Verify S2S WebSocket connection is working

  • Check s2s_ws_listening_ip and s2s_ws_listening_port configuration

  • Ensure communication servers are properly authenticated

  • Review S2S authentication logs
